Envoy Gateway

Kubernetes Gateway API

Kubernetes Ingress 의 뒤를 잇는 인그레스 트래픽 컨트롤 표준!

https://gateway-api.sigs.k8s.io/

Introduction - Kubernetes Gateway API







Gateway API 의 장점

1. 범용!

→ 범용 표준 API로 다양한 구현체 파생

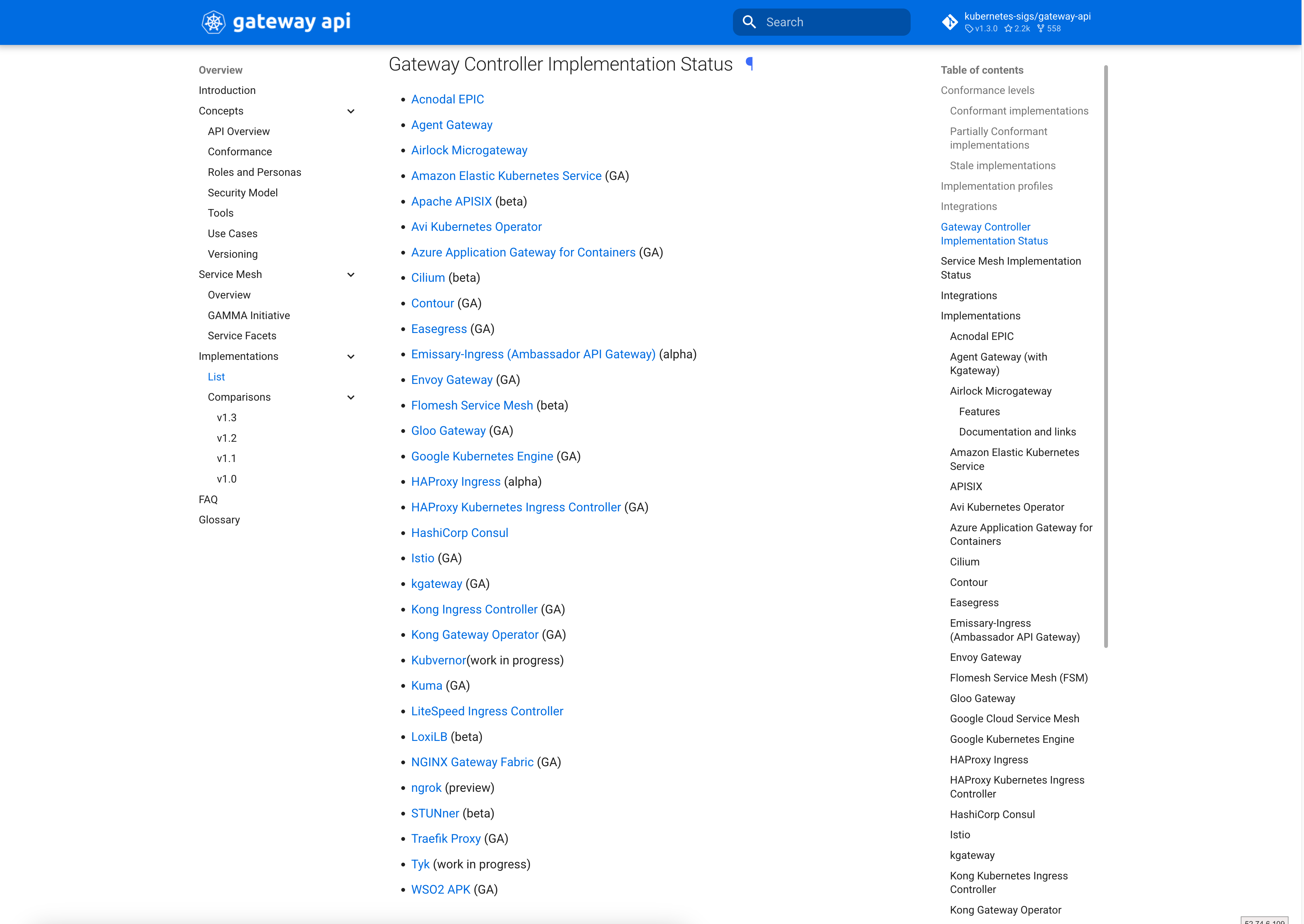

https://gateway-api.sigs.k8s.io/implementations/#gateway-controller-implementation-status

List - Kubernetes Gateway API







2. 다양한 기능!

→ Load Balancer 에서 지원하는 다양한 트래픽 컨트롤 및 HTTP 관련 옵션 제공





3. 확장성!

→ Gateway Controller 에서 지원하는 다양한 CRD를 활용하여 추가 기능 구현

→ GKE Gateway Controller 가 사용하는 Frontend Config / Backend Config

→ Envoy Gateway 가 사용하는 Security Policy / Backend

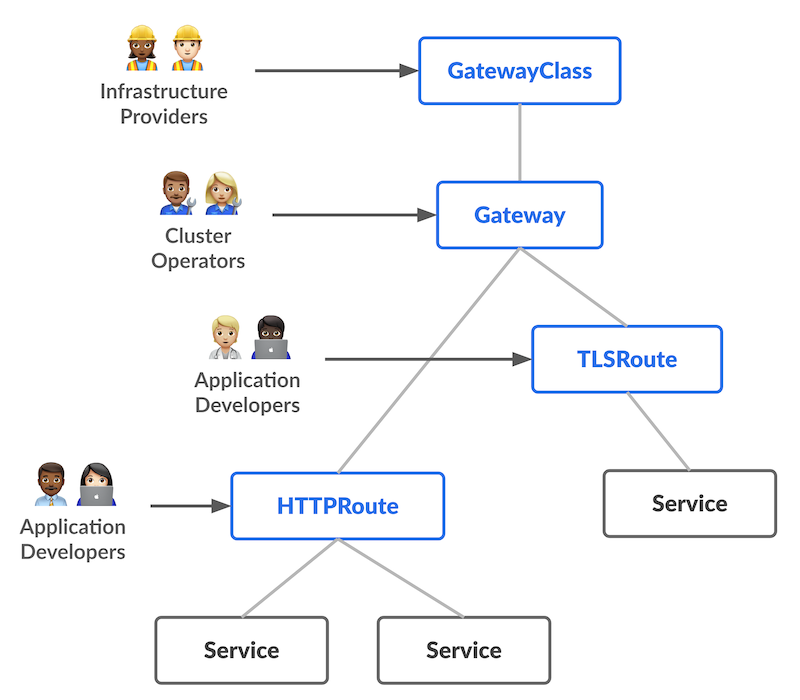

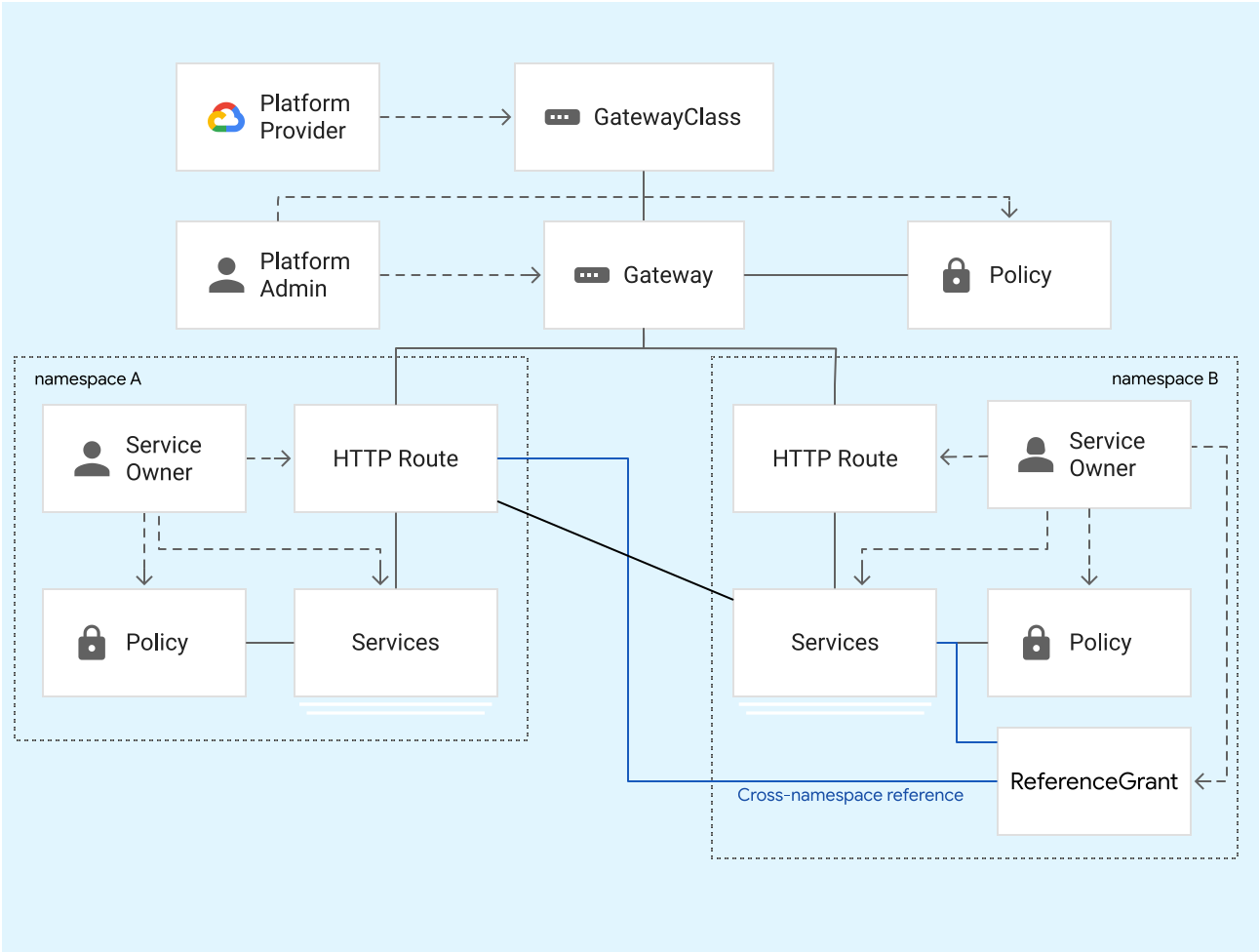

Gateway API 의 구성 요소

1. GatewayClass

→ Ingress 의 IngressClass 와 유사하게 Gateway 가 어떤 Gateway Controller 를 사용하는지 정의하는 리소스



2. Gateway

→ Load Balancer 의 프론트엔드 역할(Public Cloud 에서는 LB가 자동으로 생성된다.)

→ 클라이언트 사이드의 설정을 정의하거나, 모든 백엔드에 공통으로 적용될 백엔드 설정을 정의



3. HTTPRoute

→ 백엔드 설정을 정의

→ 어떤 Gateway 로 들어온 트래픽을 어떤 Service 로 보낼지 정의



4. TCPRoute / TLSRoute / UDPRoute / GRPCRoute

→ HTTPRoute 와 용도가 동일하지만, HTTP 가 아닌 각 프로토콜에 대한 백엔드 설정을 정의





예시) GKE Gateway Controller 로 Gateway API 사용

https://cloud.google.com/kubernetes-engine/docs/concepts/gateway-api?hl=ko

Gateway API 정보  |  GKE networking  |  Google Cloud







Envoy Gateway

Envoy

요즘 가장 핫하게 사용되는 오픈 소스 리버스 프록시는?

→ Envoy!

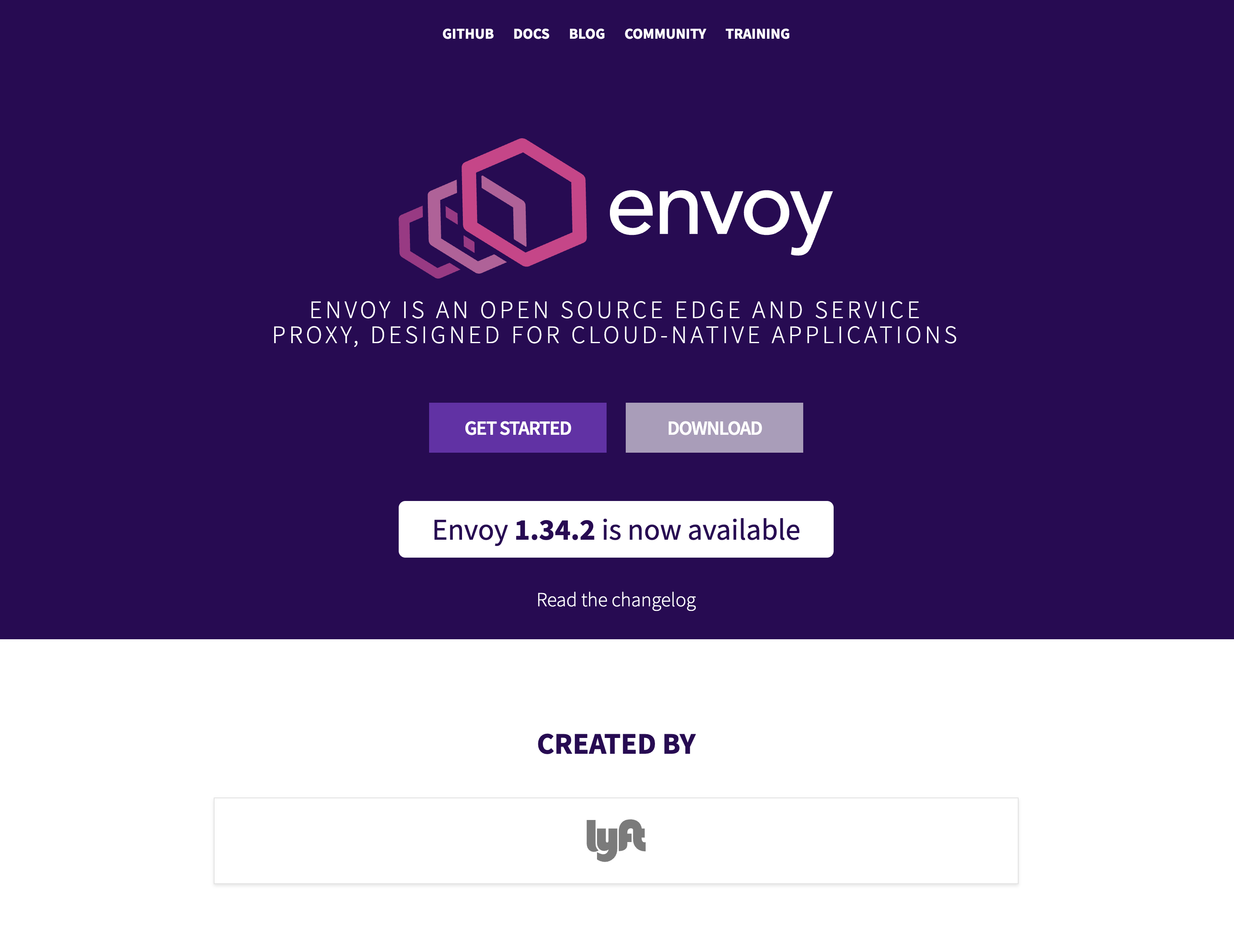

https://www.envoyproxy.io/

Envoy proxy - home

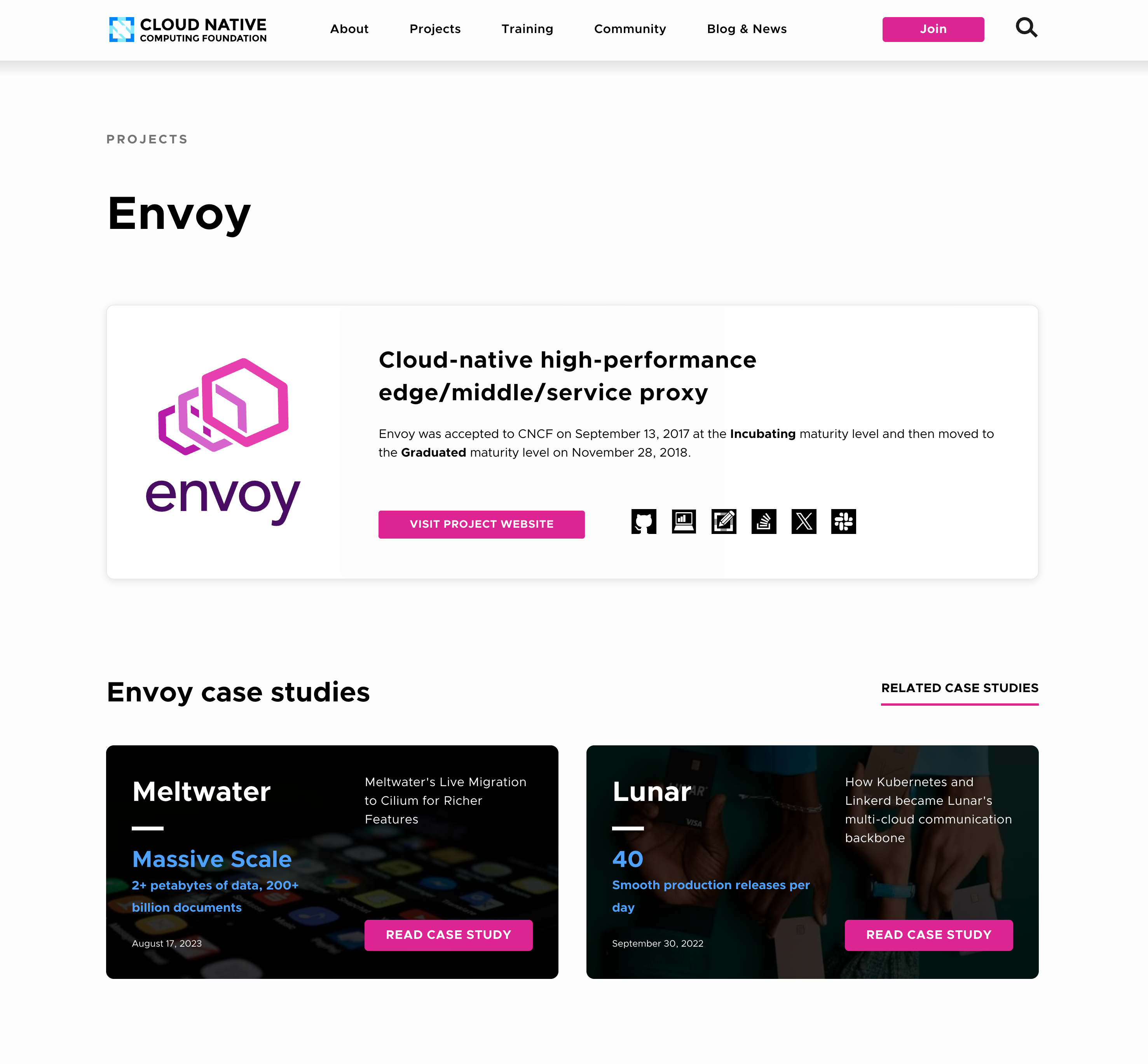

https://www.cncf.io/projects/envoy/

Envoy





우리 생활 속 Envoy…

1. Istio
2. Google Load Balancer



Envoy Gateway 는 무엇인가

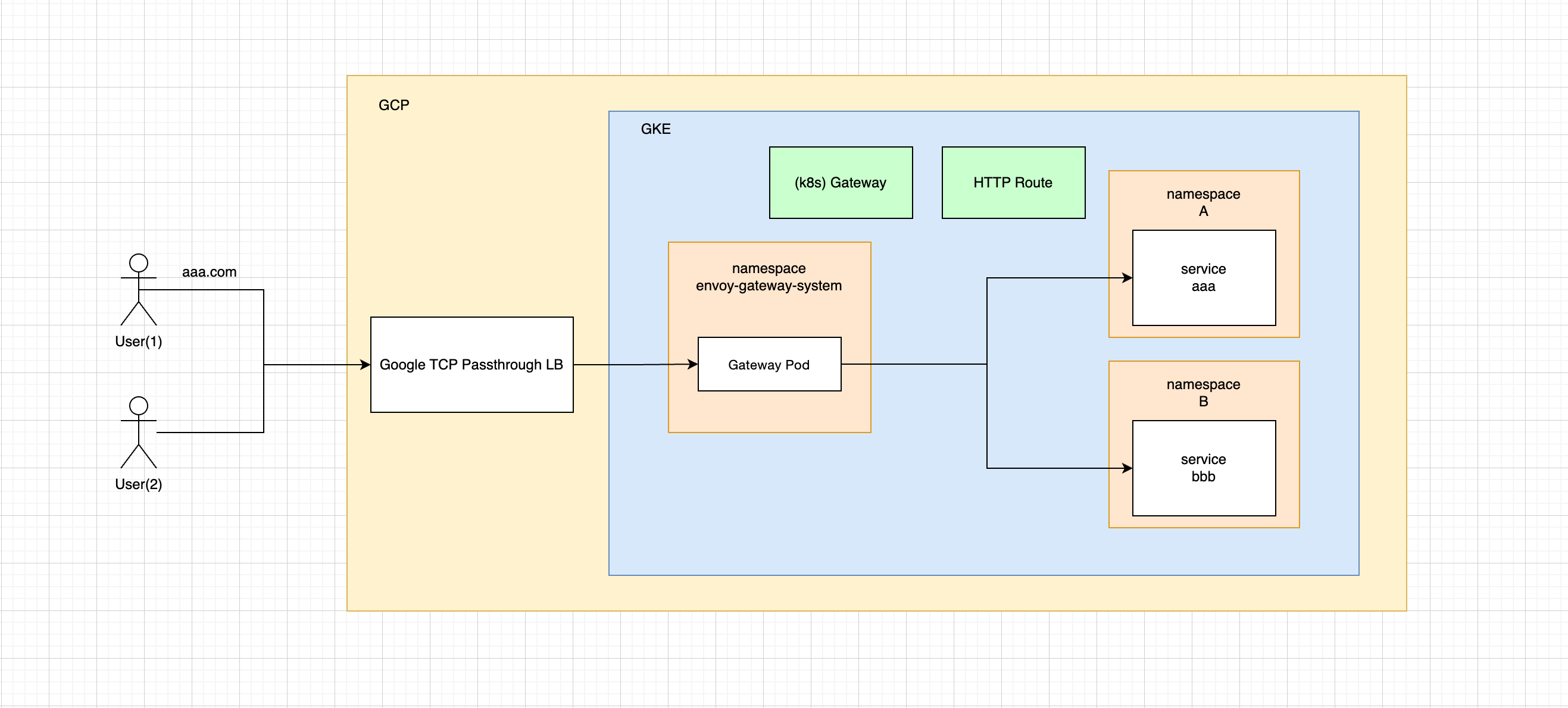

Envoy 로 Kubernetes 의 인그레스 트래픽을 컨트롤하기 위한 게이트웨이



https://gateway.envoyproxy.io/docs/







Gateway API 표준을 따르기 때문에 코어 리소스는 동일!

하지만 Envoy Gateway 만의 추가적인 기능을 제공한다.

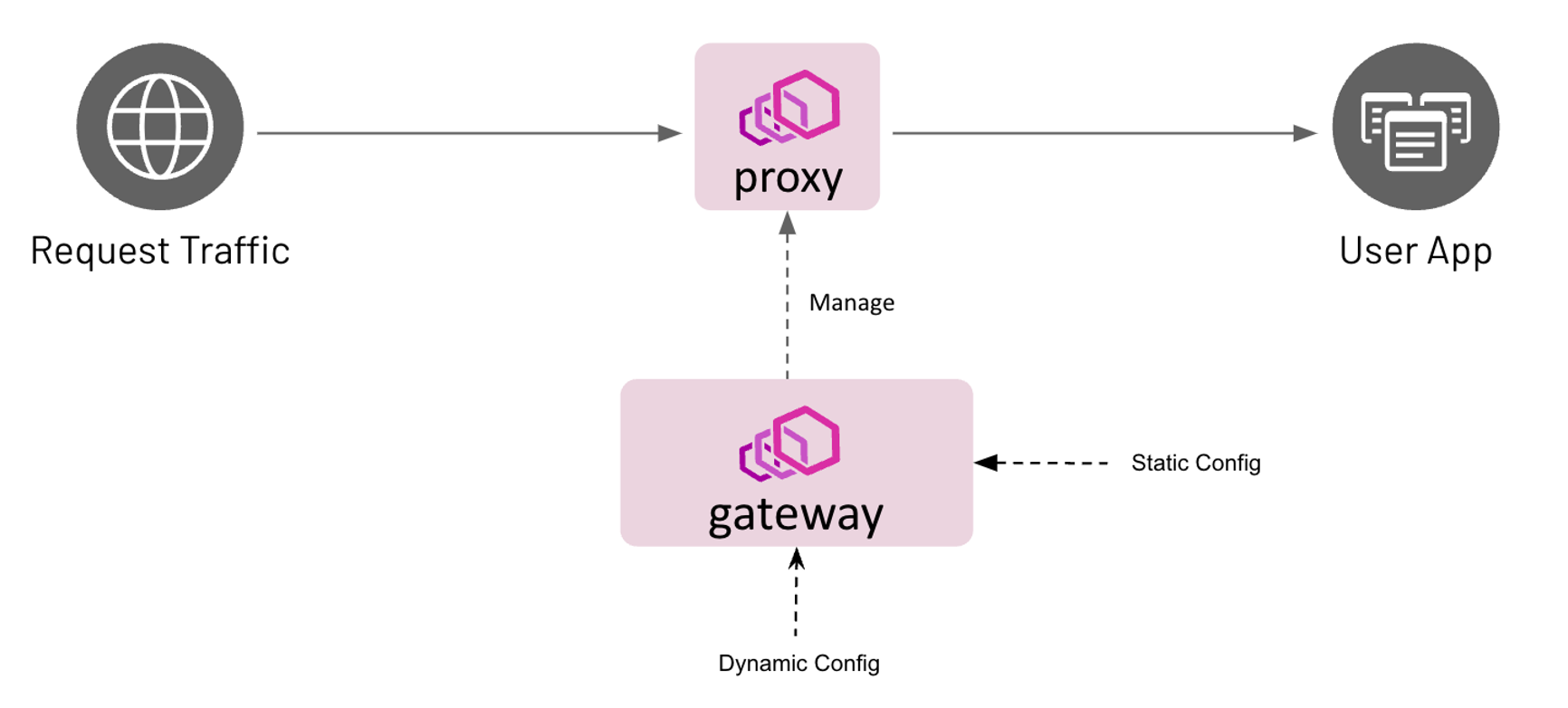

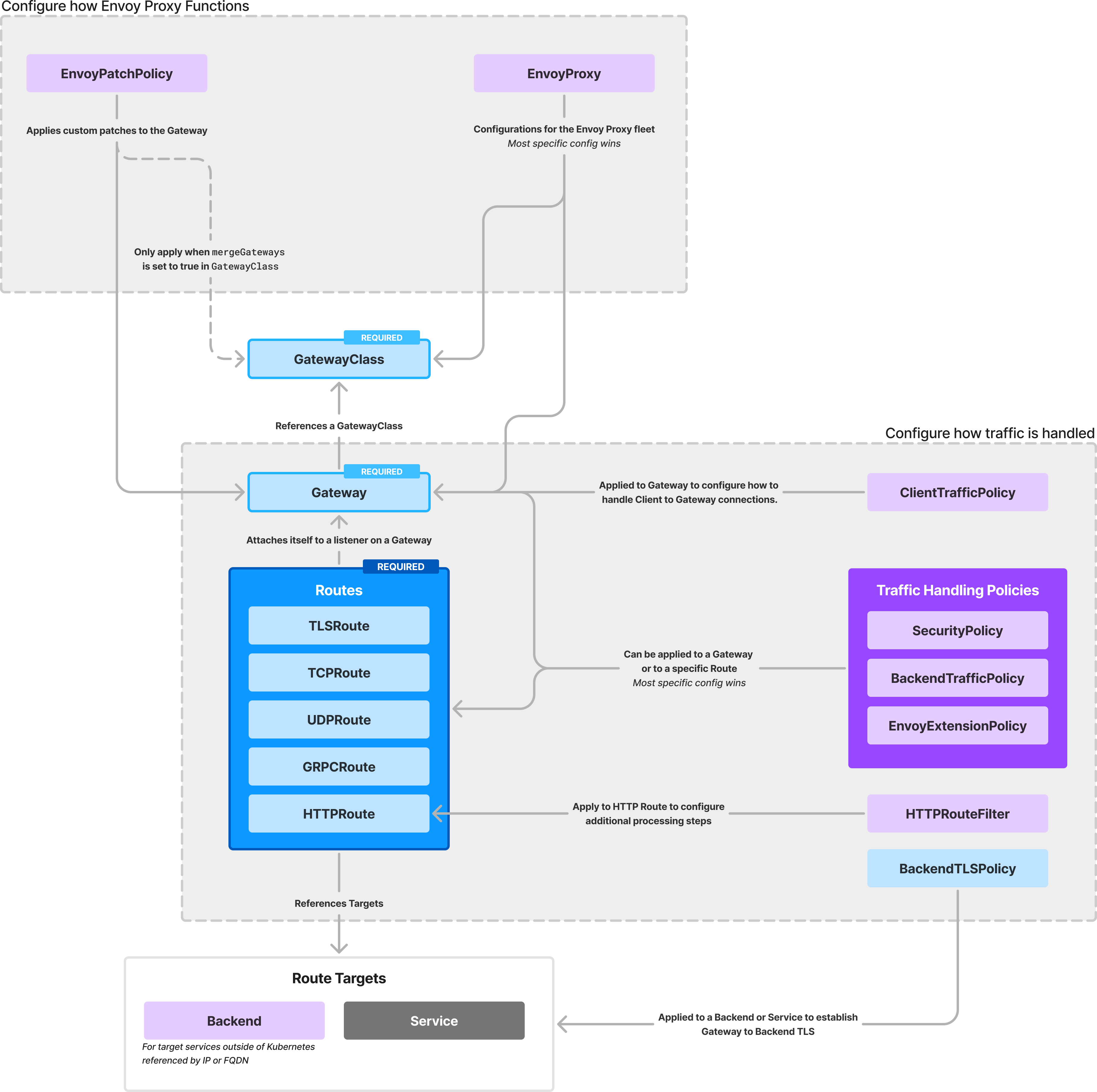

https://gateway.envoyproxy.io/docs/concepts/concepts_overview/

Envoy Gateway Resources







Envoy Gateway 를 Kubernetes 에 배포

https://gateway.envoyproxy.io/docs/install/install-helm/

Install with Helm



# Helm 으로 배포

helm install eg oci://docker.io/envoyproxy/gateway-helm --version v1.4.2 -n envoy-gateway-system --create-namespace

kubectl wait --timeout=5m -n envoy-gateway-system deployment/envoy-gateway --for=condition=Available

(참고) 배포된 리소스
-> Controller 역할의 파드만 배포되고, 실제로 트래픽을 처리할 게이트웨이 파드는 Gateway 리소스 정의 시 생성된다.

➜  [~] kubectl get all -n envoy-gateway-system
NAME                                 READY   STATUS    RESTARTS   AGE
pod/envoy-gateway-84b9976c57-k2wfd   1/1     Running   0          5m6s

NAME                    TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                                            AGE
service/envoy-gateway   ClusterIP   10.111.227.106   <none>        18000/TCP,18001/TCP,18002/TCP,19001/TCP,9443/TCP   5m6s

NAME                            READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/envoy-gateway   1/1     1            1           5m6s

NAME                                       DESIRED   CURRENT   READY   AGE
replicaset.apps/envoy-gateway-84b9976c57   1         1         1       5m6s





샘플 워크로드 배포

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: eg
spec:
  controllerName: gateway.envoyproxy.io/gatewayclass-controller
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: eg
spec:
  gatewayClassName: eg
  listeners:
    - name: http
      protocol: HTTP
      port: 80
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: backend
---
apiVersion: v1
kind: Service
metadata:
  name: backend
  labels:
    app: backend
    service: backend
spec:
  ports:
    - name: http
      port: 3000
      targetPort: 3000
  selector:
    app: backend
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: backend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: backend
      version: v1
  template:
    metadata:
      labels:
        app: backend
        version: v1
    spec:
      serviceAccountName: backend
      containers:
        - image: gcr.io/k8s-staging-gateway-api/echo-basic:v20231214-v1.0.0-140-gf544a46e
          imagePullPolicy: IfNotPresent
          name: backend
          ports:
            - containerPort: 3000
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: backend
spec:
  parentRefs:
    - name: eg
  hostnames:
    - "www.example.com"
  rules:
    - backendRefs:
        - group: ""
          kind: Service
          name: backend
          port: 3000
          weight: 1
      matches:
        - path:
            type: PathPrefix
            value: /

(참고) 배포된 리소스
-> gateway 리소스가 정의되면 자동으로 envoy-gateway-system 네임스페이스에 게이트웨이 deployment 가 생성됨

➜  [~] kubectl get all -n envoy-gateway-system
NAME                                            READY   STATUS    RESTARTS   AGE
pod/envoy-default-eg-e41e7b31-694d7976f-nnvjg   2/2     Running   0          13s
pod/envoy-gateway-84b9976c57-k2wfd              1/1     Running   0          6m3s

NAME                                TYPE           CLUSTER-IP       EXTERNAL-IP   PORT(S)                                            AGE
service/envoy-default-eg-e41e7b31   LoadBalancer   10.106.210.251   localhost     80:30253/TCP                                       14s
service/envoy-gateway               ClusterIP      10.111.227.106   <none>        18000/TCP,18001/TCP,18002/TCP,19001/TCP,9443/TCP   6m4s

NAME                                        READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/envoy-default-eg-e41e7b31   1/1     1            1           14s
deployment.apps/envoy-gateway               1/1     1            1           6m4s

NAME                                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/envoy-default-eg-e41e7b31-694d7976f   1         1         1       14s
replicaset.apps/envoy-gateway-84b9976c57              1         1         1       6m4s

➜  [~] kubectl get all -n default
NAME                           READY   STATUS    RESTARTS   AGE
pod/backend-869c8646c5-qphgz   1/1     Running   0          45s

NAME                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/backend      ClusterIP   10.97.155.127   <none>        3000/TCP   45s
service/kubernetes   ClusterIP   10.96.0.1       <none>        443/TCP    10d

NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/backend   1/1     1            1           45s

NAME                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/backend-869c8646c5   1         1         1       45s

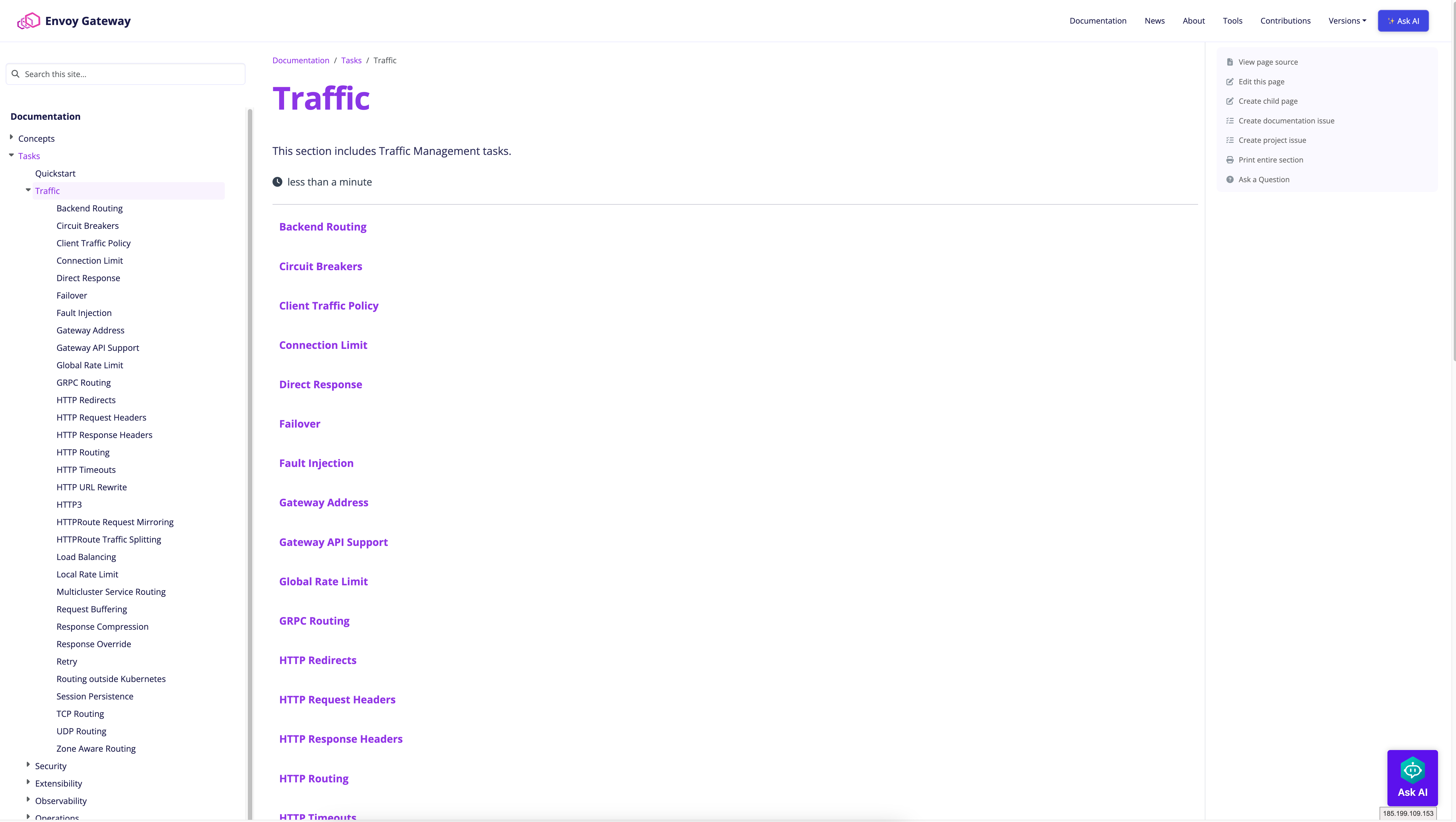

Traffic Control

https://gateway.envoyproxy.io/docs/tasks/traffic/

Traffic



트래픽 컨트롤 맛집 Envoy!

Istio… 낯익은 그의 향기…



# Circuit Breakers

---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: BackendTrafficPolicy
metadata:
  name: circuitbreaker-for-route
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: backend
  circuitBreaker:
    maxPendingRequests: 0
    maxParallelRequests: 10

# Connection Limit

---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: ClientTrafficPolicy
metadata:
  name: connection-limit-ctp
  namespace: default
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: Gateway
      name: eg
  connection:
    connectionLimit:
      value: 5

# Fault Injection

---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: BackendTrafficPolicy
metadata:
  name: fault-injection-50-percent-abort
spec:
  targetRefs:
  - group: gateway.networking.k8s.io
    kind: HTTPRoute
    name: foo
  faultInjection:
    abort:
      httpStatus: 501
      percentage: 50
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: BackendTrafficPolicy
metadata:
  name: fault-injection-delay
spec:
  targetRefs:
  - group: gateway.networking.k8s.io
    kind: HTTPRoute
    name: bar
  faultInjection:
    delay:
      fixedDelay: 2s



그 외에도…

뭘 좋아할지 몰라서 다 준비했어!

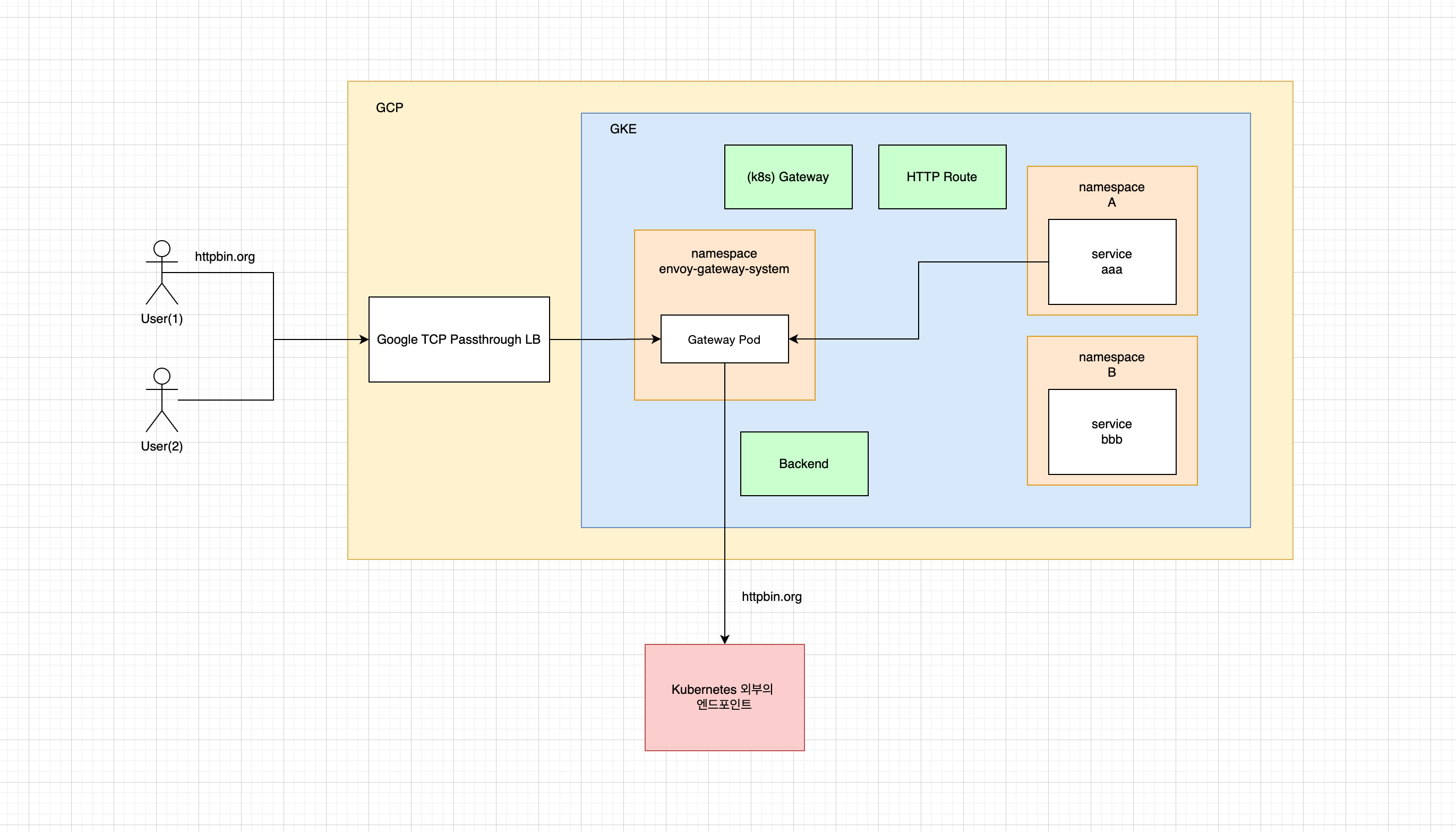

Traffic Control - Dynamic Forward Proxy

https://gateway.envoyproxy.io/docs/tasks/traffic/backend/

Backend Routing



https://www.envoyproxy.io/docs/envoy/latest/intro/arch_overview/http/http_proxy





Envoy Gateway 를 Kubernetes 외부의 엔드포인트를 백엔드로 하는 동적인 포워드 프록시로 사용!



Kubernetes 외부로 요청을 전송할 수도 있고, Dynamic 방식으로 동작하도록 설정하면 Envoy Gateway 를 통해 어디로든 갈 수 있기 때문에 기본적으로 Backend API는 비활성화되어 있다.



apiVersion: v1
kind: ConfigMap
metadata:
  name: envoy-gateway-config
  namespace: envoy-gateway-system
data:
  envoy-gateway.yaml: |
    apiVersion: gateway.envoyproxy.io/v1alpha1
    kind: EnvoyGateway
    provider:
      type: Kubernetes
    gateway:
      controllerName: gateway.envoyproxy.io/gatewayclass-controller
    extensionApis:
      enableBackend: true # Backend API 활성화!



어디로든 문 활성화!



---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: dynamic-forward-proxy
spec:
  parentRefs:
    - name: eg
  rules:
    - backendRefs:
      - group: gateway.envoyproxy.io
        kind: Backend
        name: backend-dynamic-resolver
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: Backend
metadata:
  name: backend-dynamic-resolver
spec:
  type: DynamicResolver
  tls:
    wellKnownCACertificates: System

# 호출 테스트

export GATEWAY_HOST=$(kubectl get gateway/eg -n default -o jsonpath='{.status.addresses[0].value}')

curl -v -H 'Host: httpbin.org' http://$GATEWAY_HOST/headers

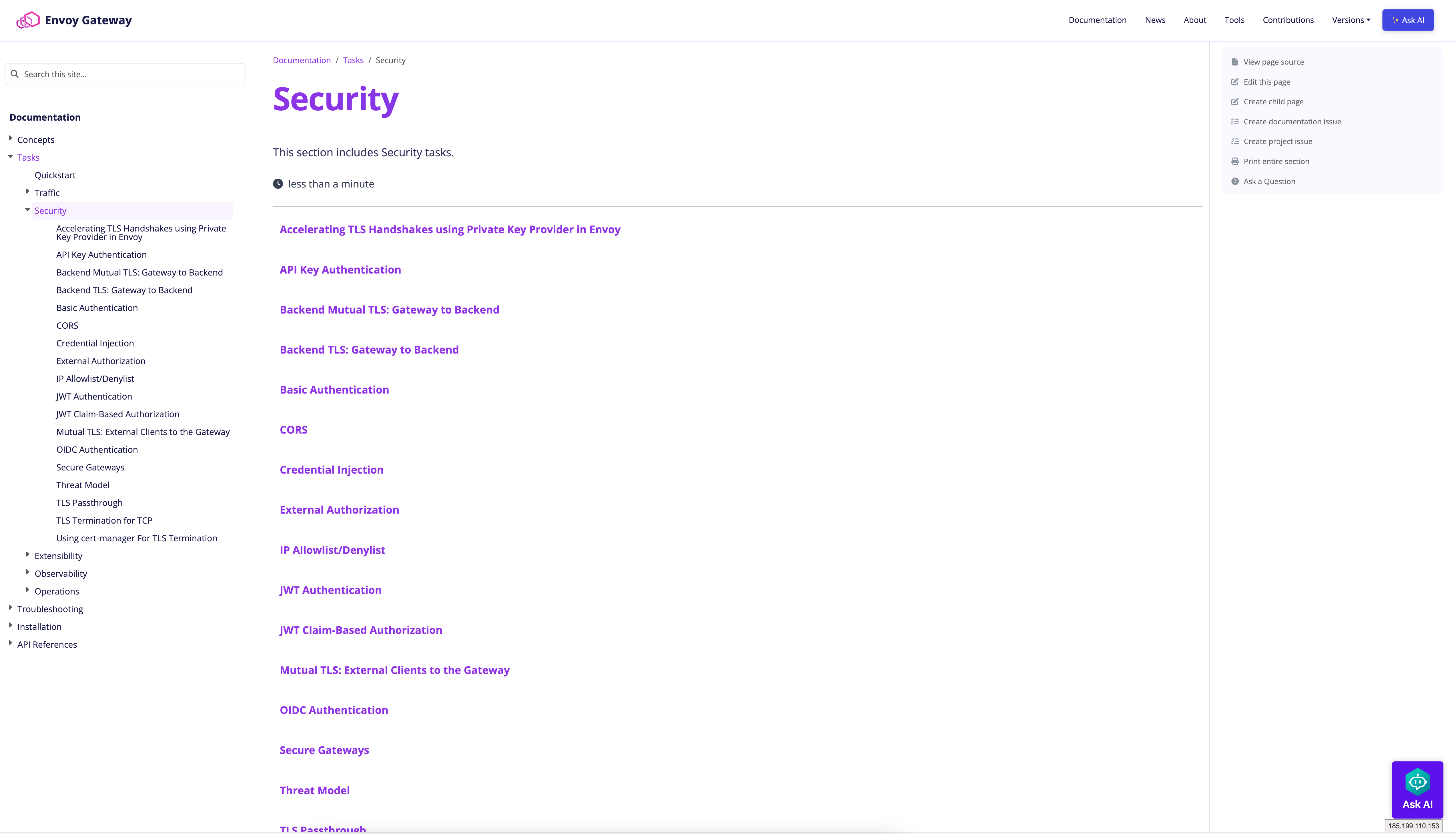

Security

뭘 좋아할지 몰라서 다 준비했어!(2)

→ 단순히 인그레스 트래픽을 전달하는 기능뿐만 아니라, 원래는 애플리케이션의 일부로 구현해야하는 기능을 게이트웨이가 대신 처리!

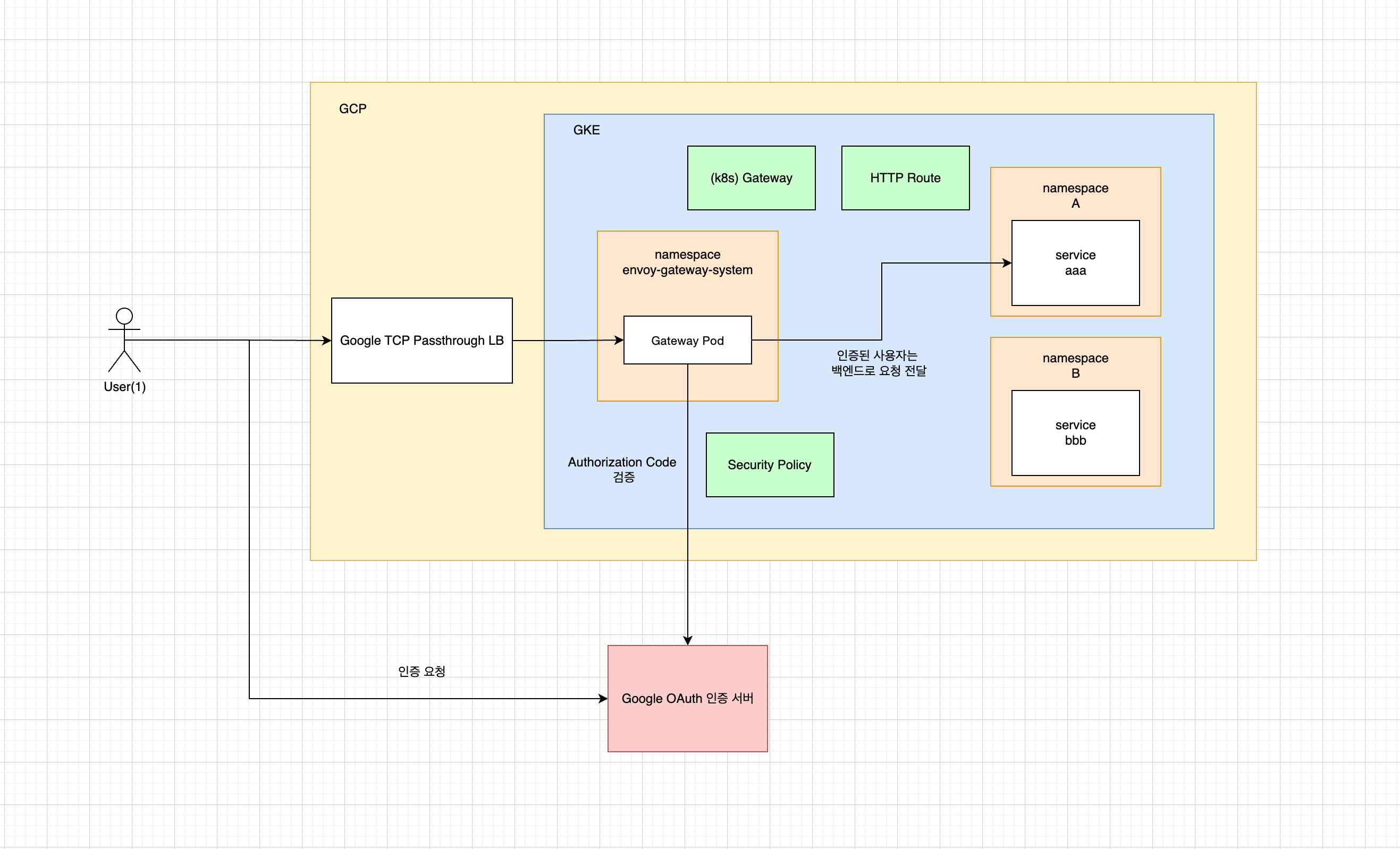

Security - OIDC Authentication

https://gateway.envoyproxy.io/docs/tasks/security/oidc/

OIDC Authentication



애플리케이션에 OIDC 인증과 관련된 코드 한 줄 없이 Google OAuth 와 같은 OIDC 인증을 적용!

→ Istio 도 유사한 기능이 있지만 반드시 OAuth2-Proxy 를 별도로 연동해야 가능

→ Envoy Gateway 는 별도 OAuth2-Proxy 없이 공짜로 가능하다!

→ GCP 의 IAP Proxy 와 유사한 기능

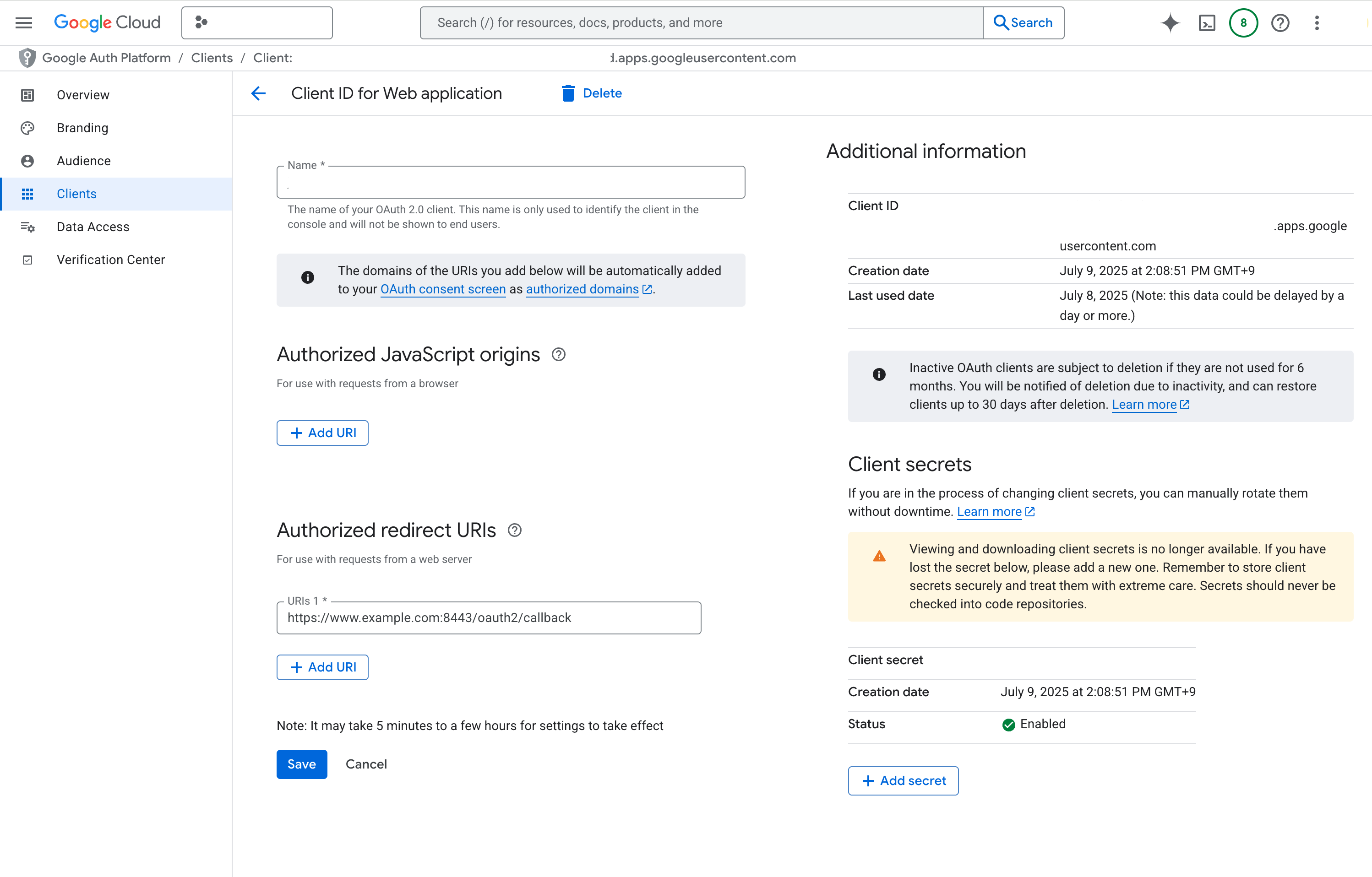

# oauth client secret 으로 시크릿 생성

kubectl create secret generic my-app-client-secret --from-literal=client-secret=${CLIENT_SECRET}



# security policy 생성

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: SecurityPolicy
metadata:
  name: oidc-example
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: backend
  oidc:
    provider:
      issuer: "https://accounts.google.com"
    clientID: "{CLIENT_ID}"
    clientSecret:
      name: "my-app-client-secret"
    redirectURL: "https://www.example.com:8443/oauth2/callback"
    logoutPath: "/logout"

# 접속 테스트

export ENVOY_SERVICE=$(kubectl get svc -n envoy-gateway-system --selector=gateway.envoyproxy.io/owning-gateway-namespace=default,gateway.envoyproxy.io/owning-gateway-name=eg -o jsonpath='{.items[0].metadata.name}')

kubectl -n envoy-gateway-system port-forward service/$ENVOY_SERVICE 8443:443

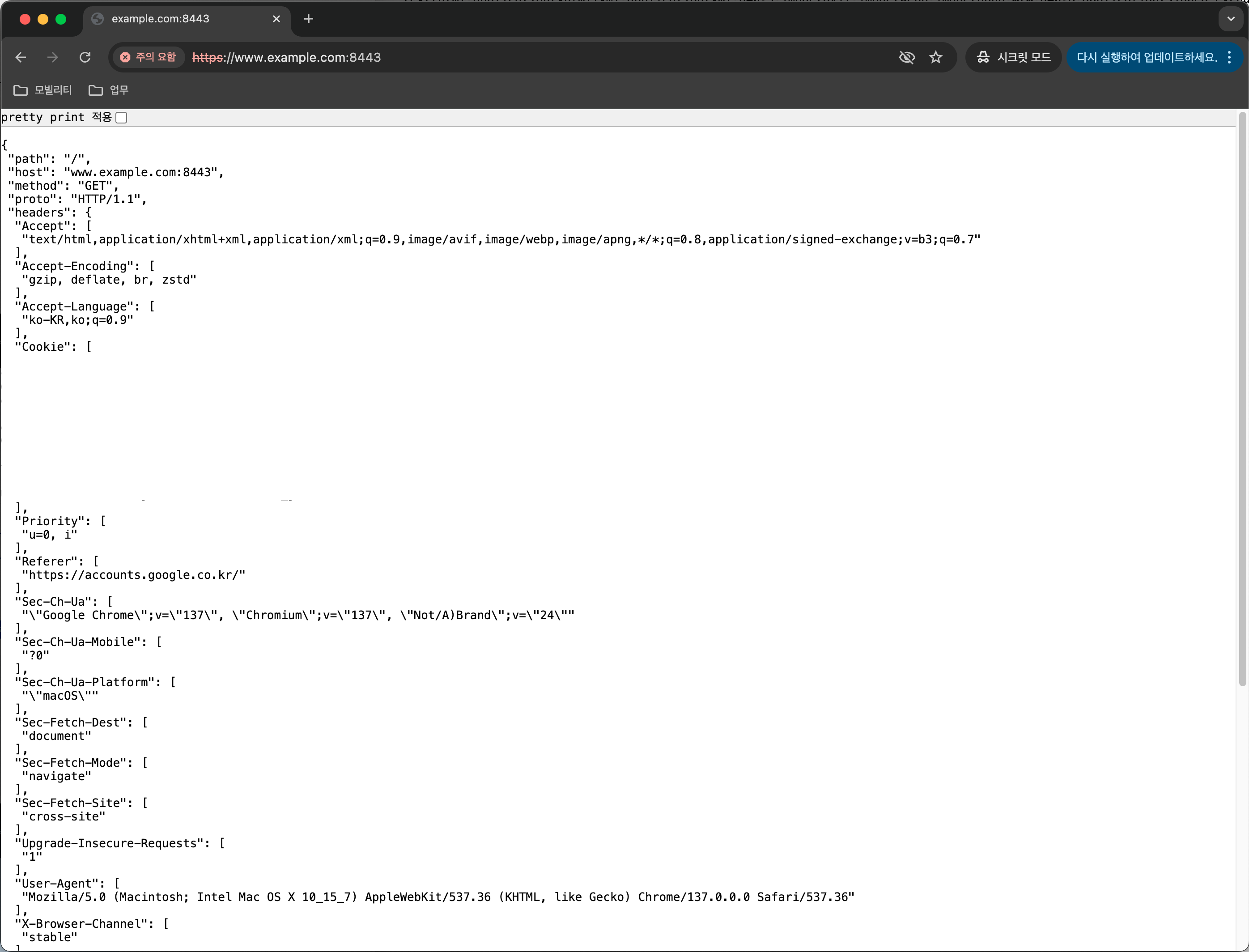

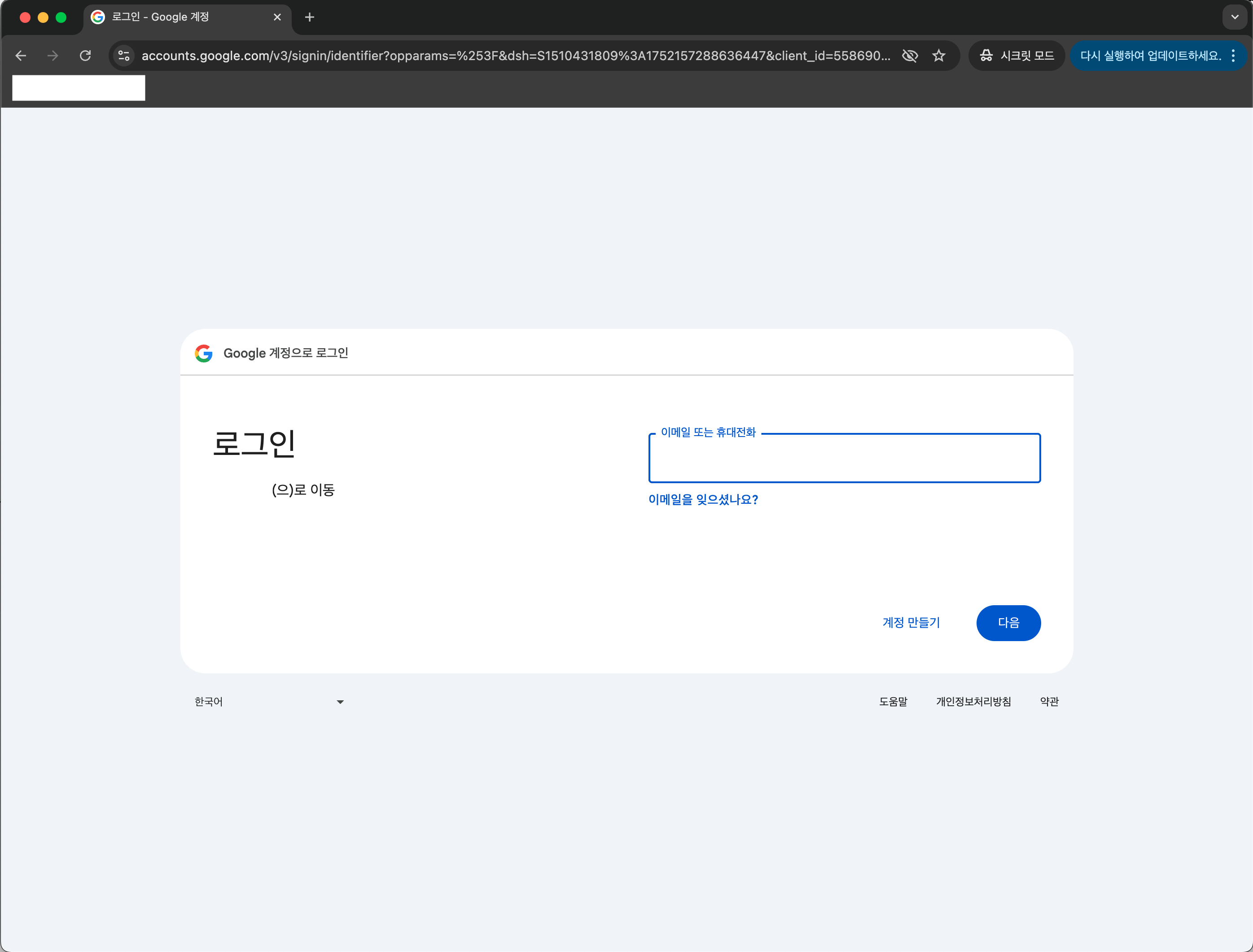

브라우저에서 접속!

https://www.example.com:8443/







Security - JWT Authentication

https://gateway.envoyproxy.io/docs/tasks/security/jwt-authentication/

JWT Authentication



https://gateway.envoyproxy.io/docs/tasks/security/jwt-claim-authorization/

JWT Claim-Based Authorization





애플리케이션에 JWT 인증과 관련된 코드 한 줄 없이 원하는 경로에 JWT 인증을 적용!





apiVersion: gateway.envoyproxy.io/v1alpha1
kind: SecurityPolicy
metadata:
  name: jwt-example
spec:
  targetRef:
    group: gateway.networking.k8s.io
    kind: HTTPRoute
    name: foo
  jwt:
    providers:
    - name: example
      remoteJWKS:
        uri: https://raw.githubusercontent.com/envoyproxy/gateway/main/examples/kubernetes/jwt/jwks.json # JWT 검증에 사용할 퍼블릭 키가 포함된 Json Web Key
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: foo
spec:
  parentRefs:
  - name: eg
  hostnames:
  - "www.example.com"
  rules:
  - backendRefs:
    - group: ""
      kind: Service
      name: backend
      port: 3000
      weight: 1
    matches:
    - path:
        type: PathPrefix
        value: /foo
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: bar
spec:
  parentRefs:
  - name: eg
  hostnames:
  - "www.example.com"
  rules:
  - backendRefs:
    - group: ""
      kind: Service
      name: backend
      port: 3000
      weight: 1
    matches:
    - path:
        type: PathPrefix
        value: /bar

# 호출 테스트

export GATEWAY_HOST=$(kubectl get gateway/eg -o jsonpath='{.status.addresses[0].value}')

curl -sS -o /dev/null -H "Host: www.example.com" -w "%{http_code}\n" http://$GATEWAY_HOST/foo

# 인증 토큰이 없는 경우

➜  [envoy-gateway] curl -v http://www.example.com/foo
* Host www.example.com:80 was resolved.
* IPv6: (none)
* IPv4: 127.0.0.1
*   Trying 127.0.0.1:80...
* Connected to www.example.com (127.0.0.1) port 80
> GET /foo HTTP/1.1
> Host: www.example.com
> User-Agent: curl/8.6.0
> Accept: */*
>
< HTTP/1.1 401 Unauthorized
< www-authenticate: Bearer realm="http://www.example.com/foo"
< content-length: 14
< content-type: text/plain
< date: Wed, 09 Jul 2025 06:54:17 GMT
<
* Connection #0 to host www.example.com left intact
Jwt is missing

# 인증 토큰이 있는 경우

TOKEN=$(curl https://raw.githubusercontent.com/envoyproxy/gateway/main/examples/kubernetes/jwt/test.jwt -s) && echo "$TOKEN" | cut -d '.' -f2 - | base64 --decode

curl -sS -o /dev/null -H "Host: www.example.com" -H "Authorization: Bearer $TOKEN" -w "%{http_code}\n" http://$GATEWAY_HOST/foo

➜  [envoy-gateway] curl -v -H "Authorization: Bearer $TOKEN" http://www.example.com/foo
* Host www.example.com:80 was resolved.
* IPv6: (none)
* IPv4: 127.0.0.1
*   Trying 127.0.0.1:80...
* Connected to www.example.com (127.0.0.1) port 80
> GET /foo HTTP/1.1
> Host: www.example.com
> User-Agent: curl/8.6.0
> Accept: */*
> Authorization: Bearer eyJhbGci...y942XheVLmGwLMBkQ
>
< HTTP/1.1 200 OK
< content-type: application/json
< x-content-type-options: nosniff
< date: Wed, 09 Jul 2025 06:58:30 GMT
< content-length: 982
<
{
 "path": "/foo",
 "host": "www.example.com",
 "method": "GET",
 "proto": "HTTP/1.1",
 "headers": {
  "Accept": [
   "*/*"
  ],
  "Authorization": [
   "Bearer eyJhbGci...y942XheVLmGwLMBkQ"
  ],
  "User-Agent": [
   "curl/8.6.0"
  ],
  "X-Envoy-External-Address": [
   "192.168.65.3"
  ],
  "X-Forwarded-For": [
   "192.168.65.3"
  ],
  "X-Forwarded-Proto": [
   "http"
  ],
  "X-Request-Id": [
   "2e286dd2-6f1f-49f5-9d55-fc5e81141dff"
  ]
 },
 "namespace": "default",
 "ingress": "",
 "service": "",
 "pod": "backend-869c8646c5-wp8jj"
* Connection #0 to host www.example.com left intact
}%

# 로컬의 jwks 사용도 가능!

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: SecurityPolicy
metadata:
  name: jwt-example
spec:
  targetRef:
    group: gateway.networking.k8s.io
    kind: HTTPRoute
    name: foo
  jwt:
    providers:
    - name: example
      localJWKS:
        type: ValueRef
        valueRef:
          group: ""
          kind: ConfigMap
          name: jwt-local-jwks
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: jwt-local-jwks
data:
  jwks: |
    {
        "keys": [
            {
                "alg": "RS256",
                "e": "AQAB",
                "key_ops": [
                    "verify"
                ],
                "kty": "RSA",
                "n": "xOHb-i1WDfeAv...Cgqw-P",
                "use": "sig",
                "kid": "b520b3c2c4bd75a10e9cebc9576933dc"
            }
        ]
    }

끝!
